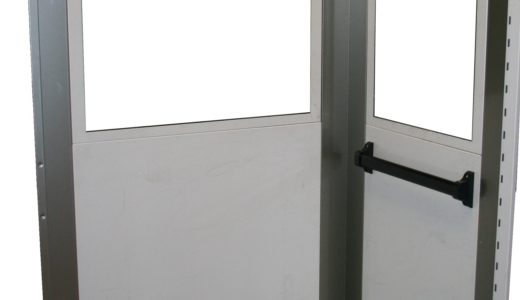

SUITABLE SOLUTION TO OVERCOME ARCHITECTURAL BARRIERS, WHERE SPACES DO NOT ALLOW TO INSTALL A LIFT. SEMI AUTOMATIC WITH AN OUTSIDE CALL, PRESSING THE BUTTON ONCE, AND INSIDE CALL, THE BUTTON MUST BE PRESS UNTIL THE ARRIVAL AT THE FLOOR. LANDING DOORS HAVE A PUSH-PULL OPENING AND AUTOMATIC CLOSURE.THEY MAY HAVE A SMALL OR A LARGE GLASS AND A WIDE RANGE OF DETAILS TO FIT PERFECTLY WITH THE ENVIRONMENT WHERE IT WILL BE INSTALLED.

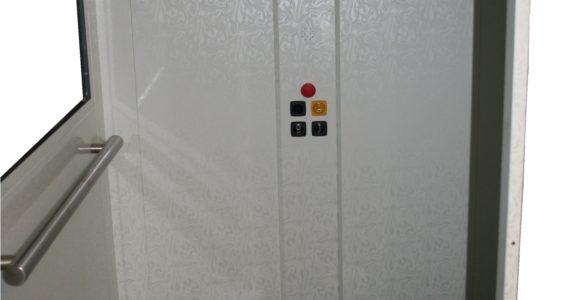

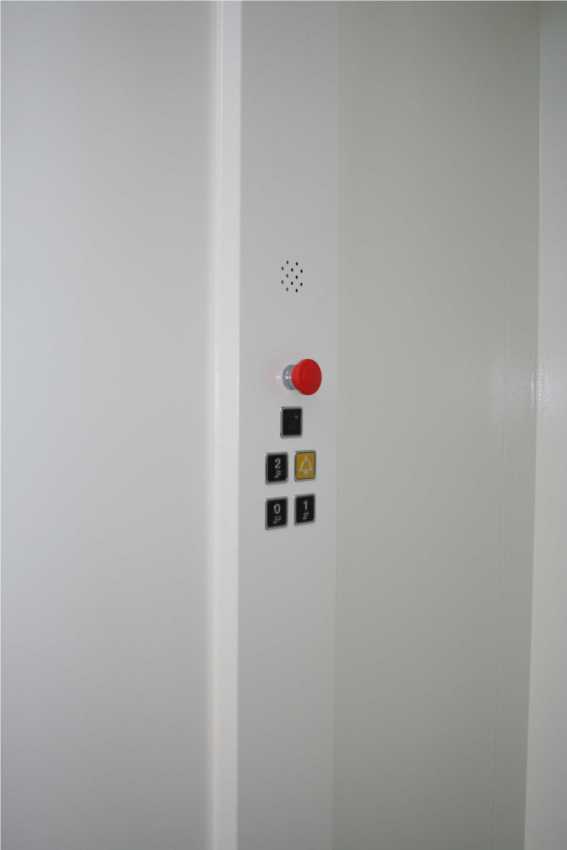

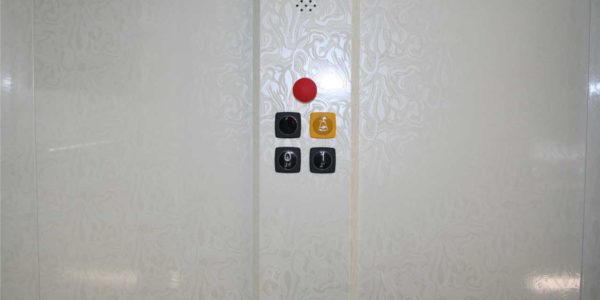

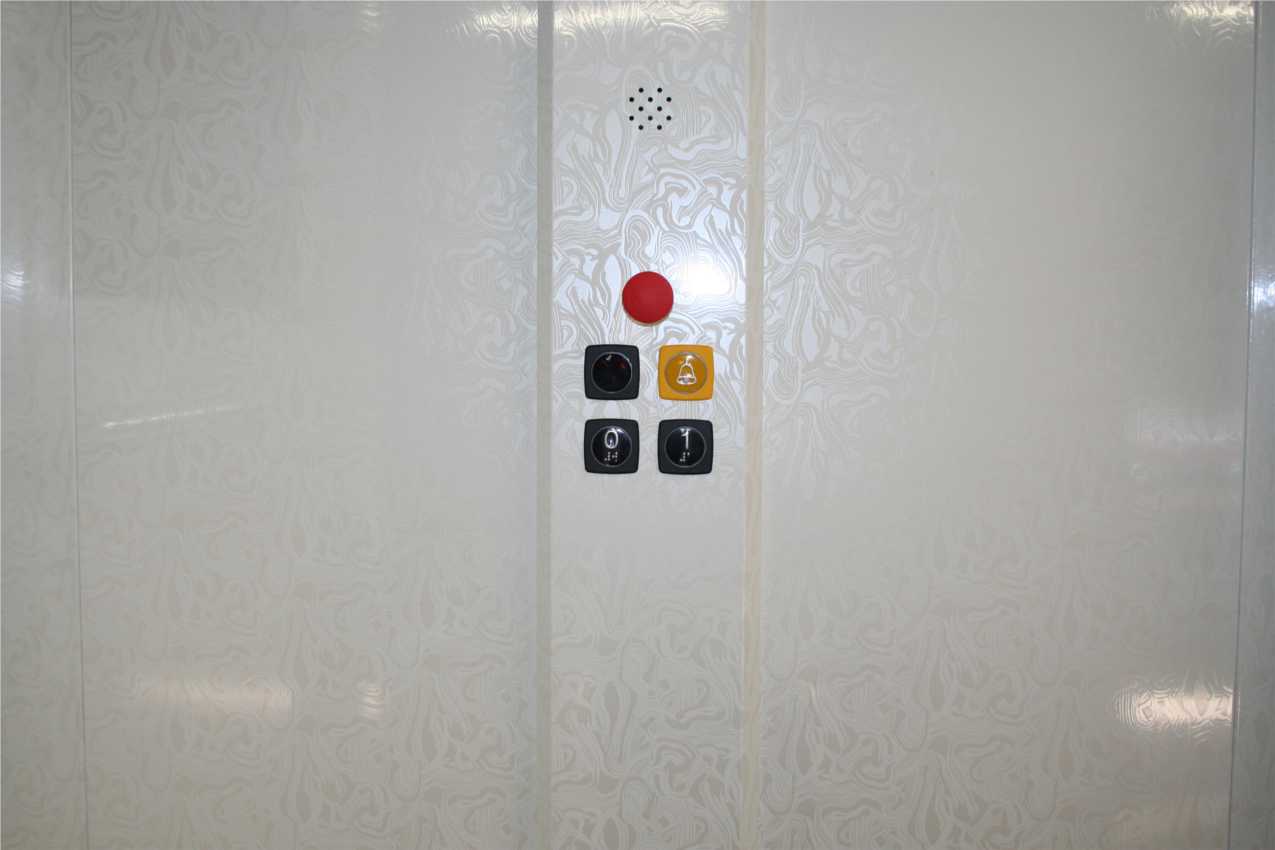

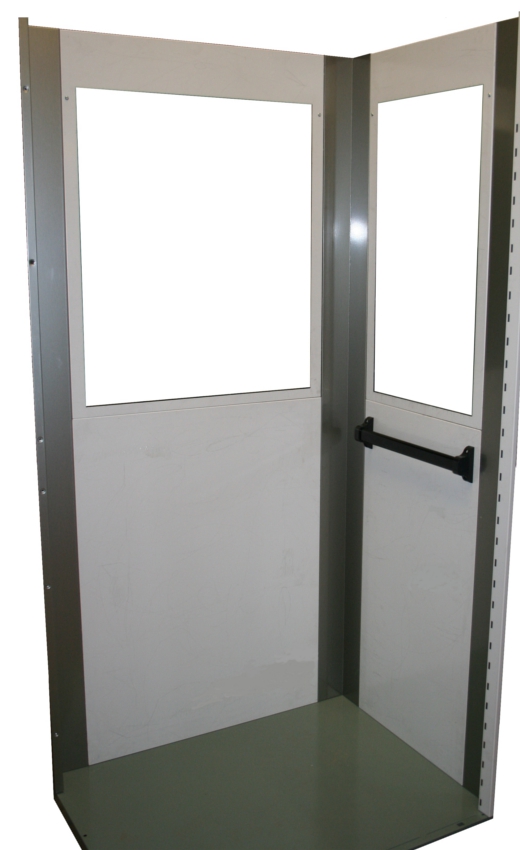

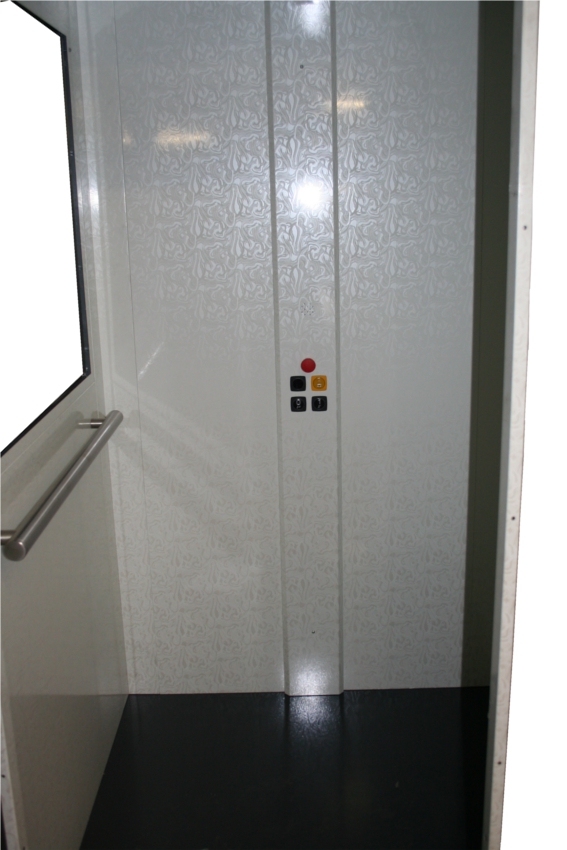

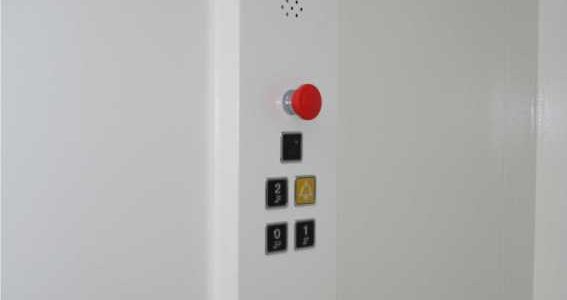

CAR CAN BE BUILT ACCORDING TO THE CUSTOMERS’ NEEDS.HE CAN CHOOSE FROM A WIDE RANGE OF DESIGN OPTIONS AND COLOURS , FROM THE BOTTONHOLE , BUTTONS AND LIGHTS ,TO LOCK AND DOORS.
THE QUALITY OF THIS PLATFORM IS BASED ON THE CHOICE OF MACHINE COMPONENTS WHICH DIFFERS IT FROM THE OTHERS. ALL NEW PLATFORMS ARE EQUIPPED WITH A TWO SPEED CONTROL UNIT.THEY RUN ON SPECIAL VULKOLLAN WHEELS.ACCORDING TO THE FLOW, THEY HAVE TWO OR FOUR STEEL ROPES TRACTION WITH AN INNOVATIVE PULLEYS SYSTEM TO REDUCE FRICTION AND WORN OUT.
IT ENSURES LOW NOISE AND HIGH LEVEL RIDE COMFORT.
CARRYING CAPACITY OF OUR PLATFORMS IS FROM A MIN 250 KG TO A MAX OF 500 KG . IT CAN LIFT FROM A PERSON WITH REDUCED MOBILITY AND WHEELCHAIRS USERS UP TO 6 PERSONS.
Technical Sheet
REFERENCE: 2006/42/CEE ; EN UNI 81:41
RATED LOAD: from 250to 500 KG
MIN PIT OR RAMP: 160 mm / 210 mm
HEADROOM : 2350 mm standard to 2500
2 SPEED: 0,15 m/s – 0,04/m/s
STOPS: 8 max
MAX RIDE : 18 mt
ENTRANCES: up to 3
LANDING DOORS: sliding automatic telescopic doors from 700 to 1000 2/3 panels
CAR DOORS: sliding automatic telescopic doors
CAR HEIGHTS: 2100 mm
PHOTOCELL: no available on request
DRIVE: oildynamic system 2/4 steel ropes

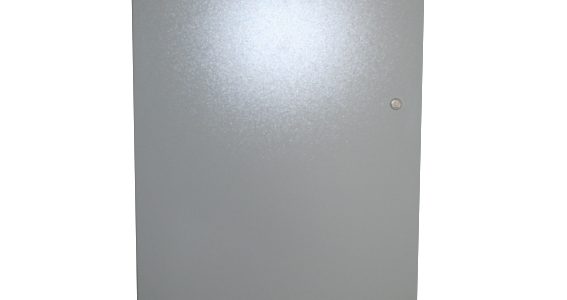

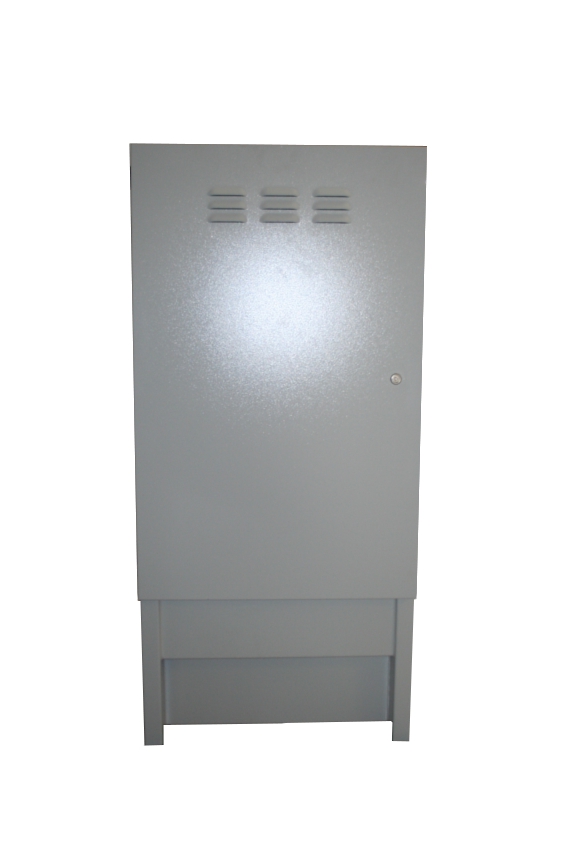

CONTROL UNIT ROOM: cabinet (600x400xH1200-1400)
OPERATION: automatic
POWER SUPPLY: 220 V – 50 Hz
ENERGY CONSUMPTION: 1,5 / 1,8 Kw
SETTING : internal/external
