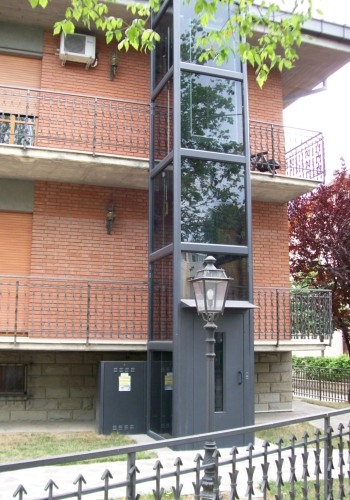

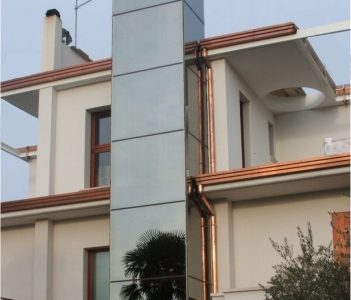

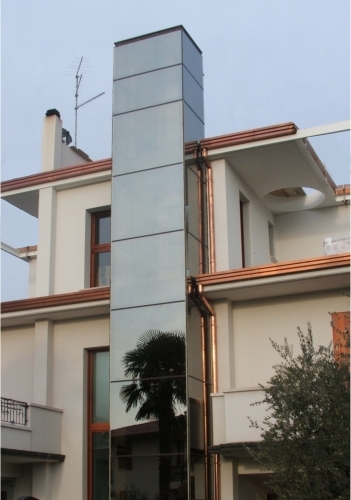

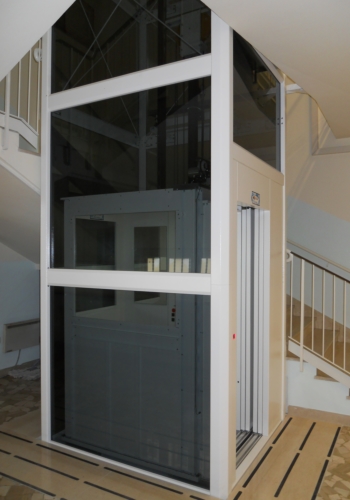

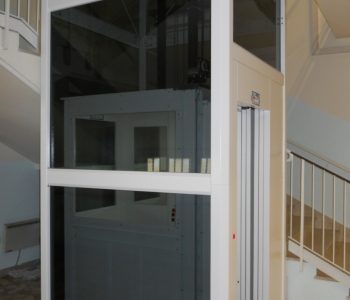

MADE WITH DIFFERENT TYPES OF MATERIALS FRAMEWORKS CAN BE INSTALLED OUTSIDE, BUT CAN ALSO BE USED INSIDE, IN STAICASE ENTRANCES OR REDUCED SPACES.
ALL OUR FRAMEWORKS ARE VERIFIED WITH CONTROL STRENGHT PROGRAMS IN CASE OF WIND LOADS OR SEISMIC EVENTS AND ARE SUPPLIED WITH A TECHNICAL EARTQUAKE CHECK REPORT.
Technical Sheet
REFERENCE : 2006/42/CEE ; EN UNI 81:41
RATED LOAD: from 250 to 500 KG
MIN PIT OR RAMP: 160 mm / 210 mm
HEADROOM : 2350 mm standard to 2500 / 2600
2 SPEED: 0,15 m/s – 0,04/m/s
STOPS: 8 max
MAX RIDE : 18 mt
ENTRANCES: up to 3
LANDING DOORS: hinged doors/sliding doors
CAR DOORS: none/folding doors/sliding doors
CAR HEIGHTS: 2100 mm
DRIVE: oildynamic 2/4 steel ropes
CONTROL UNIT ROOM: cabinet (600x400xH1200-1400)
OPERATION: automatic/constant pressure push button in the car POWER SUPPLY: 220 V – 50 Hz
ENERGY CONSUMPTION: 1,5 / 1,8 Kw
SETTING: internal/external
REFERENCE FRAMEWORK: 2006/42/CEE, legge n.1086 05-11-1971, Eurocodice 3, N.T.C 2008, D.M. 14 gennaio 2008
FRAMEWORK BARS: 100×100 / 120×120 / 150×60 mm
FRAMEWORK CROSSBAR: 100×65 / 150×65 mm standard distance 1500 mm
PAINTED SHEET: see colour card
GLASS : shatterproof satin finished / smoked / stopsol
