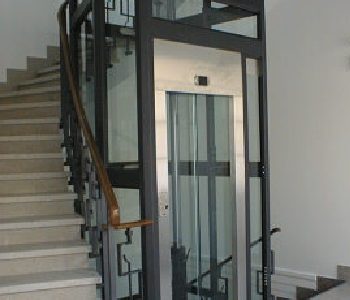

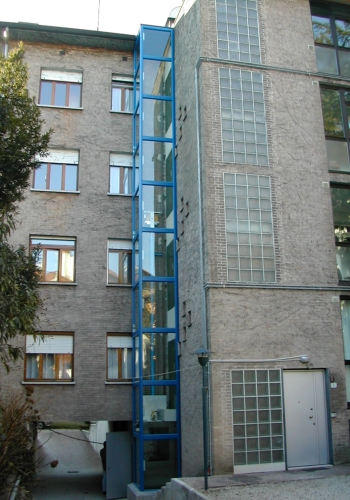

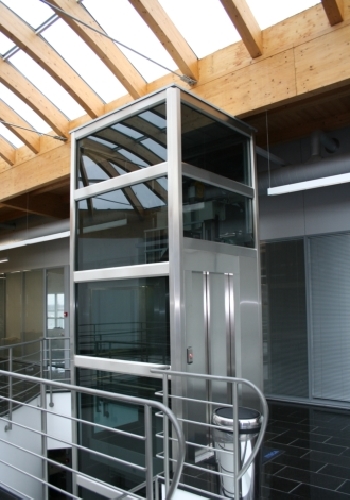

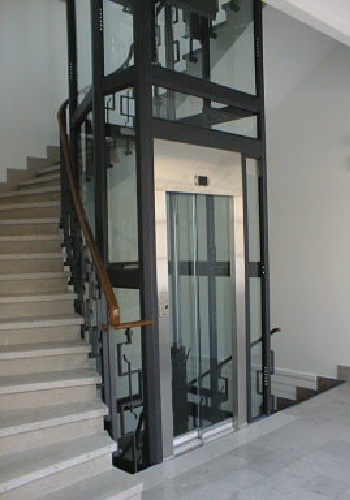

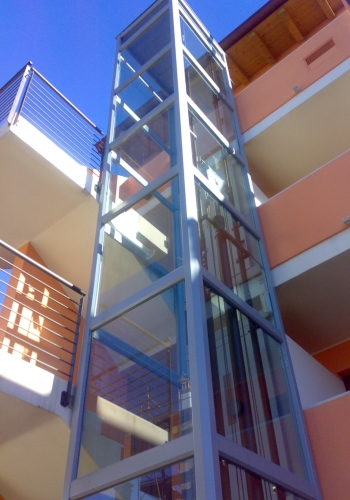

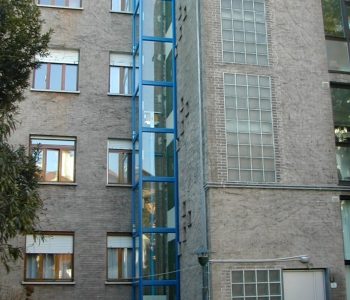

MADE WITH DIFFERENT TYPES OF MATERIALS FRAMEWORKS CAN BE INSTALLED OUTSIDE, BUT CAN ALSO BE USED INSIDE, IN STAICASE ENTRANCES OR REDUCED SPACES.
ALL OUR FRAMEWORKS ARE VERIFIED WITH CONTROL STRENGHT PROGRAMS IN CASE OF WIND LOADS OR SEISMIC EVENTS AND ARE SUPPLIED WITH A TECHNICAL EARTQUAKE CHECK REPORT
Technical Sheet
REFERENCE: 2006/42/CEE ;
RATED LOAD: from 250 to 750 KG
MAX RIDE: 22 mt
ENTRANCES: up to 3
LANDING DOORS: hinged doors/sliding doors
DRIVE: oildynamic / electric
SETTING: internal/external
FRAMEWORK REFERENCE: 2006/42/CEE, legge n.1086 05-11-1971, Eurocodice 3, N.T.C 2008, D.M. 14 gennaio 2008
FRAMEWORK BARS: 100×100 / 120×120 / 150×60 mm
FRAMEWORK CROSSBARS: 100×65 / 150×65 mm standard distance 1500 mm
PIANTED SHEET : see colour card
GLASS: shatterproof satin finished / smoked/stopsol
